Products->HDMI->Matrix
 -> BACK

Model Number:
HDM02-42A
Product Name:

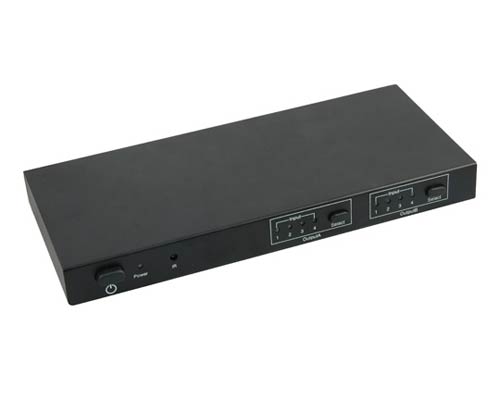

HDMI Matrix 4x2 Audio+Toslink/Coaxial Outpur w/ Remote Control

The HDMI Matrix 4x2 Audio+Toslink/Coaxial Output is a device that directs high resolution 1080p video and digital audio from any four HDMI sources to two output displays as well as present higher quality audio through signal transmission to the amplifier by stereo, toslink, or coaxial cable. This devices removes the necessity to disconnect and reconnect from sources which has only one output. This device has a full high resolution HDTV signal up to 1080p and works with Blue Ray DVD, PS3, HD-DVD players, and a satellite set-up box that connects with HDMI display. It also has infrared remote control for easy access any time

Feature

•Supports up to 1080p video resolution

•Supports HDCP Supports HDMI 1.3b

•Supports 12bit per channel (36bit all channel) deep color

•Supports uncompressed audio such as LPCM

•Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HD, and Dolby True HD

•Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth

•Supports easy switching between any four HDMI input sources to any or combination two High quality output displays

Supports digital stereo, toslink, and coaxial audio output Infrared remote control included for easy switching

Download
