Model Number:
UC02-C2D-01
Product Name:

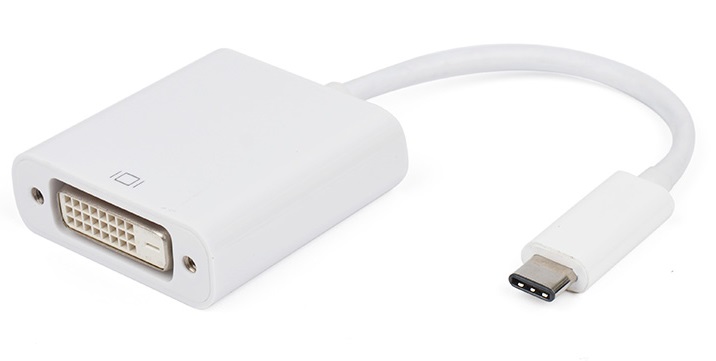

USB 3.1 Type C to DVI Adapter

This USB 3.1 type C to DVI adapter provides high throughput using the USB 3.1 bus and supports the high definition monitors with high resolution and high refresh rate. The USB 3.1 type C adapter allows you to connect your desktop PC or laptop's USB port to an extra monitor or TV.

Feature

•Standard USB 3.1 type C

•Reversible plug for easy to plug in /out on type C

•Supports USB 3.1 input and DVI output

•Flexible USB type C Switching Support for USB 5G and DisplayPort 1.2 Alt mode

•Supports DVI highest video resolution 1080p

•Supports DVI 225 MHz / 2.25 Gbps per channel (6.75Gbps all channel) bandwidth

•Supports DVI 12 bit per channel (36 bit all channel) deep color

•Supports bus-powered and self-powered operation



Signal Inputs/Output



Input port

USB3.1 Type-C Male x1

Output port

DVI Female x1

Warranty



Limited Warranty

1 Year

Environmental



Operating Temperature

0℃to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement

USB bus power

External Power Supply

NO

Accessories Adapter



Size(L-W-H)

Main Unit :41.5×37×14.5mm

Cable: 150mm

Remote control

NO

User Manual

English Version
