Model Number:
UC02-C2V-01
Product Name:

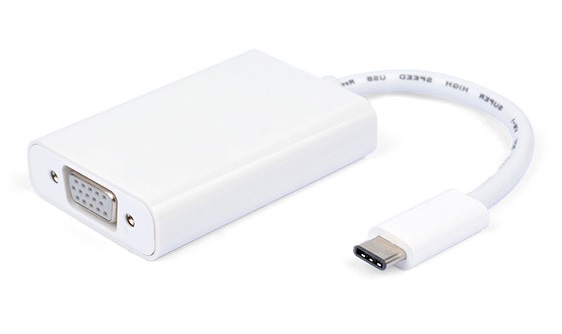

USB 3.1 Type C to VGA Adapter

This USB type C to VGA adapter provides high throughput using the USB 3.1 bus and supports the high definition monitors with high resolution and high refresh rate. The USB 3.1 type C Adapter allows you to connect your desktop PC or laptop's USB port to an extra monitor or TV.

Feature

Standard USB type C

Supports USB 3.1 input and VGA output

Flexible USB type C Switching Support for USB 5G and DisplayPort 1.2 Alt mode

Supports VGA 225 MHz / 2.25 Gbps per channel (6.75Gbps all channel) bandwidth

Supports DVI 12 bit per channel (36 bit all channel) deep color

Supports display cloning and extending

Supports bus-powered and self-powered operation



Signal Inputs/Output



Input port

USB3.1 Type-C Male x1

Output port

VGA Female x1

Warranty



Limited Warranty

1 Year

Environmental



Operating Temperature

0℃to +45℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement

USB bus power

External Power Supply

NO

Certifications

FCC,CE

Accessories Adapter



Size(L-W-H)

Main Unit: 41.5x37x14.5mm

Cable:150mm

Remote control

NO

User Manual

English Version
