Model Number:
UC02-C2DP-01
Product Name:

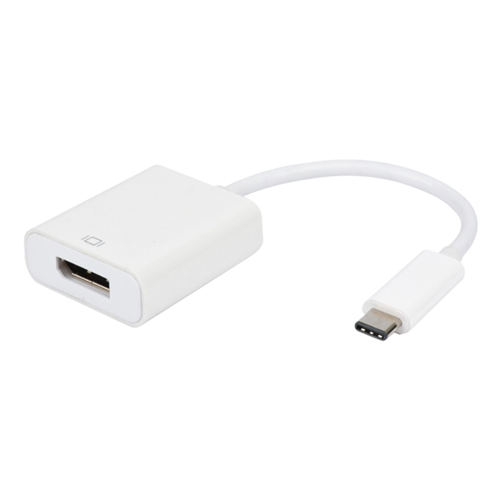

USB 3.1 Type C to DP Adapter

This USB 3.1 type C to HDMI adapter provides high throughput using the USB 3.1 bus and supports the high definition monitors with high resolution and high refresh rate. The USB 3.1 type C adapter can connect your desktop PC or laptops USB port to an extra monitor or TV.

Feature

•Standard USB3.1 Type-C input and DisplayPort output

•Reversible plug for easy to plug in /out on Type-C

•Supports per lane data rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

•Supports resolution up to 3840x2600 @60Hz (mirror mode) in DP1.1 (or 1.2) in SST mode.

•Flexible USB Type-C Switching Support for USB 5G and DisplayPort 1.2 Alt mode

•Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2,8/10/12bpc

•Supports DisplayPort 1.2 and former versions

•Supports resolutions as follows:

4Kx2K，@ 24Hz、25Hz、30Hz；

1080P，@24Hz、50Hz、60Hz；

720P 、480P、576i、480i，@50Hz and 60Hz

•USB bus power (no external power supply)

 DP adapter,USB 3.1 adapter,USB 3.1,USB type C,type C adapter,computer adapter

Signal Inputs/Output



Input port

USB3.1 Type-CMalex1

Output port

DisplayPort Femalex1

Resolutions

Max up to 3840X2600

Warranty



Limited Warranty

1 Year

Environmental



Operating Temperature

0℃to +45℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Certifications

FCC,CE

Power Requirement

USB bus power

External Power Supply

NO

Accessories Adapter



Size(L-W-H)

Main Unit:41.5x37x14.5mm

Cable:150mm

Remote control

NO

User Manual

English Version
