Model Number:
HDE02-007
Product Name:

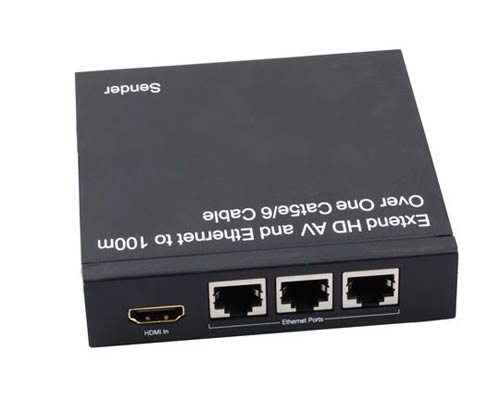

HDMI Extender by 1xCat5e-6 (100M) with 3port Ethernet HUB

The Extender is based on the HDBaseT technology. It extends your HD display with the resolutions of 1080p/60Hz up to 330 feet (100 meters) away from your HDMI or DVI-D source using one CAT5e/6 cable. It also extends Ethernet and provides an IR back channel to control AV sources using the same CAT5e/6 cable. The three Ethernet ports on both the Sender and Receiver are connected to standard network devices such as 100Base-T routers and hubs. Built-in IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.

Feature

•Support HDCP Support uncompressed HDMI signal

•Enables HDMI10.2 Gbps and 100Mbps Ethernet in parallel over a single 100m Cat5e/6 cable

•Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth

•Support 1080p@60Hz@48bit pixels

•Support 3D pass-through and CEC pass-through

•Supports uncompressed audio such as LPCM

•Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD)

•There are 3 standard Ethernet ports with switching capabilities on each unit,there is no difference between the 3 and any type of connection topology is permitted

•Built-in IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices

•CAT5e/6 cable follows the standard of IEEE-568B
