Model Number:
UB202-1E100L
Product Name:

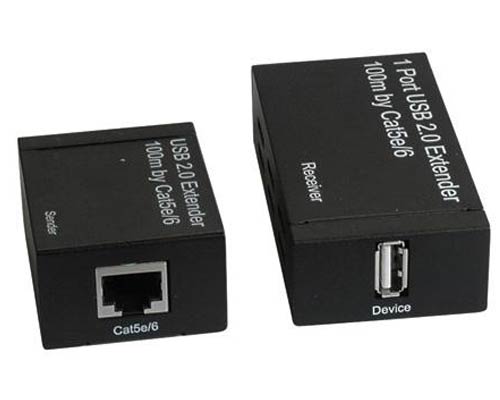

1 Port USB 2.0 Extender (100m)

The 1 Port USB 2.0 Extender connects to the USB device up to 100m away from host (computer) using one Cat5e/6 cable. If connected to Ethernet Switch, it can extend USB device to 200m away from host using two 100m Cat5e/6 cables. The maximum transfer speed for USB 2.0 can be up to 480Mbps and the actual transfer speed of this product is 150Mbps. It Integrates 10/100Mbps Fast Ethernet MAC/PHY and is Embedded Ethernet 802.3/3u transceiver, and compatible 100Base-TX and10base-T PMD level standards. It supports Windows XP, Vista 32bit and 64 bit, Windows 7 32bit and 64 bit.

Feature

•Compatible USB 2.0 specification

•Support high speed (150Mbps), full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices

•USB devices can work with Cat5e/6 cable up to 100 meters

•If connected to Ethernet Switch, it can extend USB device to 200m away from host using two Cat5e/6 cables

•Integrates 10/100Mbps Fast Ethernet MAC/PHY

•Compatible 100Base-TX and10base-T PMD level standards

•Embedded Ethernet 802.3/3u transceiver

•Supports MDI/MDIX auto crossover function (Auto-MDIX)

•Supports major Ethernet protocols TCP/IP
