Model Number:
HDS02-14L
Product Name:

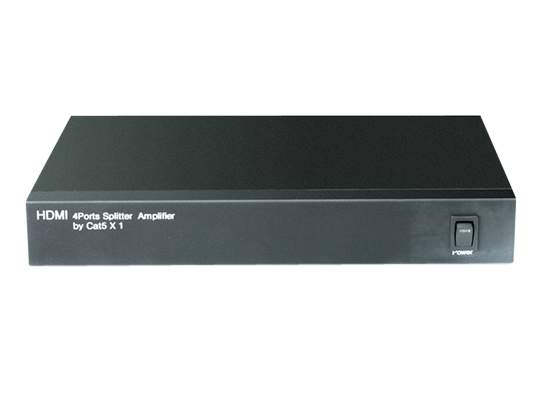

HDMI Splitter 1x4 by Cat-5e/6

The HDMI Splitter 1x4 by Cat-5e/6 has four RJ45 outputs which distributes the input HMDI signal into two identical outputs. Each receiver works with the splitter as a full functional module using CAT-5e/6 cable for HDTV display up to 50 meters for 1080p.

Feature

•Supports HDMI V1.2a

•Supports up to 1080p video resolution

•Supports 8bit per channel (24bit all channel) deep color

•Supports uncompressed audio such as LPCM

•Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth

•Easy installation and no need for setting Follow the IEEE-568B

•Standard CAT-5e/6 cable can substitute HDMI cable for long distance transmission

•Transmission up to 50M for 1080p using UTP cable with cross stand

Download
